Uline Logo Louvered Panel and Bin Guide

View as PDF
What Panel Do I Need?

Number of Louvers per Panel

Model # Description Panel Size Total Number
of Rows		 Number of
Louvers per Row

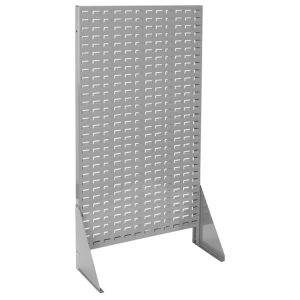

H-1427 Single Sided Floor
Rack Bin Organizer		 36 x 66" 30 12
H-1904 Double Sided Floor
Rack Bin Organizer		 36 x 66" 60 (30 per side) 12

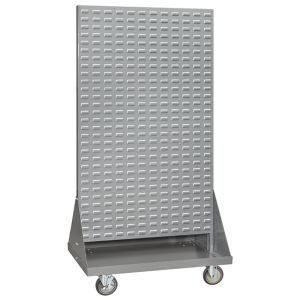

H-3888 Double Sided Mobile
Stackable Bin Organizer		 36 x 66" 60 (30 per side) 12

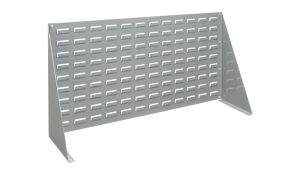

H-1424 Bench Rack 36 x 19" 9 12

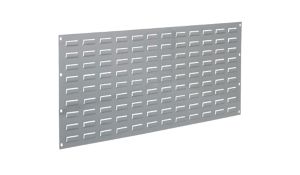

H-1492 Wall Mount Panel Rack 36 x 19" 9 12

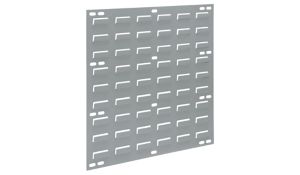

H-4685 Wall Mount Panel Rack 18 x 19" 9 6
WHICH BINS AND HOW MANY DO I NEED?

Shown on a 36 x 66" panel

Model Number Bin Width Number
of Rows
Used
per Bin		 Max. # of
Bins that
Fit in One
36" Row
S-12413, S-12414 4.125" 2 8
S-13536 4.125" 3 8
S-12415, S-12418 5.5" 3 6
S-12417 11" 3 3
S-20581 6" 3 5
S-13537 16.5" 3 2
S-12416, S-12419 8.25" 4 4
S-12420 16.5" 4 2
S-14454 8.25" 5 4
S-12421 11" 6 3
S-12422 16.5" 6 2
ENDLESS CONFIGURATIONS
See below for a few options.
Shown on a 36 x 66" panel
S-12415
1 Carton
(12 bins)
S-12419
1 Carton
(12 bins)

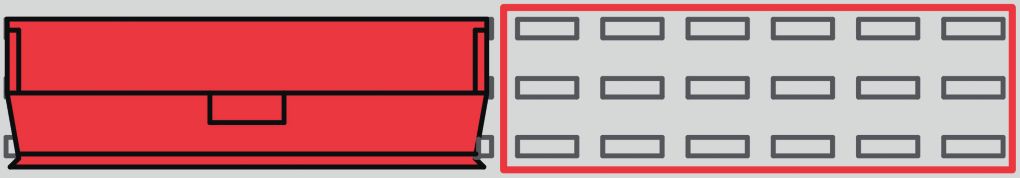

S-12421
1 Carton
(3 bins + 1 left over)
S-12422
1 Carton
(2 bins + 1 left over)
Shown on a 36 x 66" panel
S-13536
4 Cartons
(40 bins + 8 left over)
S-20581
1 Carton
(10 bins + 2 left over)
S-12417
2 Cartons
(9 bins + 3 left over)

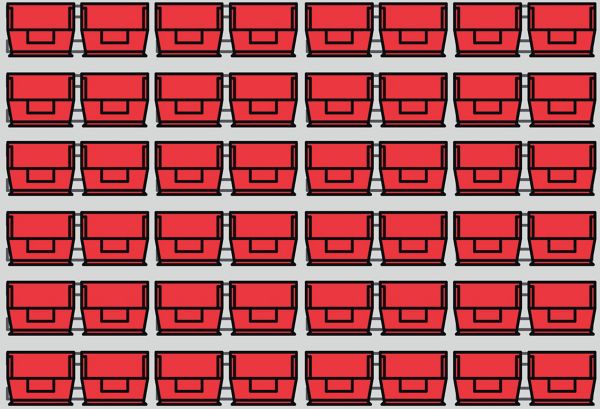

Shown on a 36 x 66" panel
S-12413
2 Cartons
(48 bins)
S-12421
3 Cartons
(9 bins + 3 left over)
Shown on a 36 x 19" panel
S-13536
1 Carton
(8 bins + 4 left over)
S-12417
1 Carton
(6 bins)

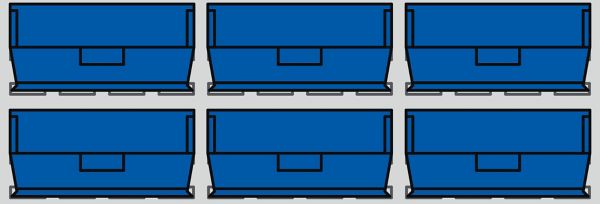

Shown on a 18 x 19" panel
S-12415
1 Carton
(6 bins + 6 left over)
S-13537
1 Carton
(1 bin + 5 left over)
